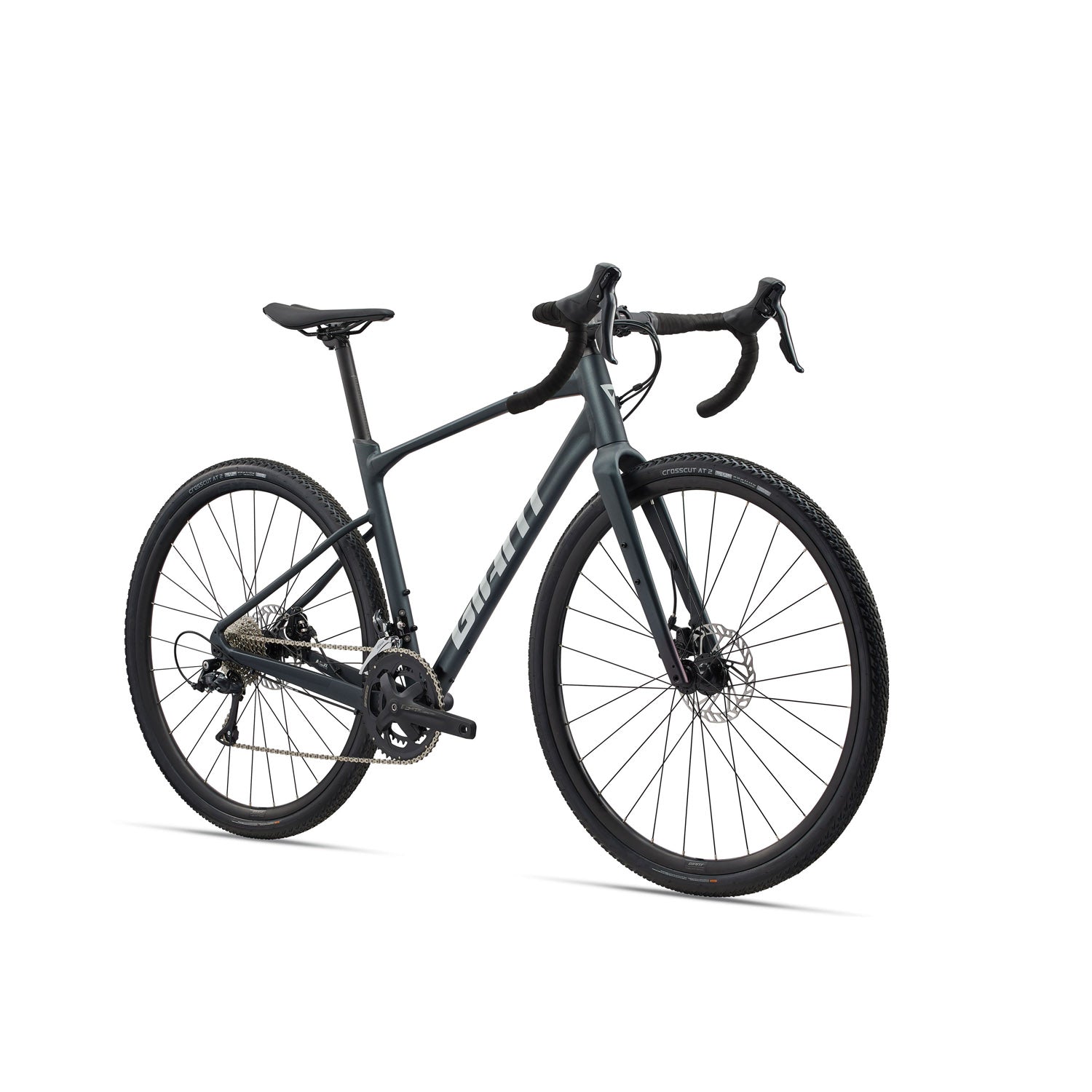

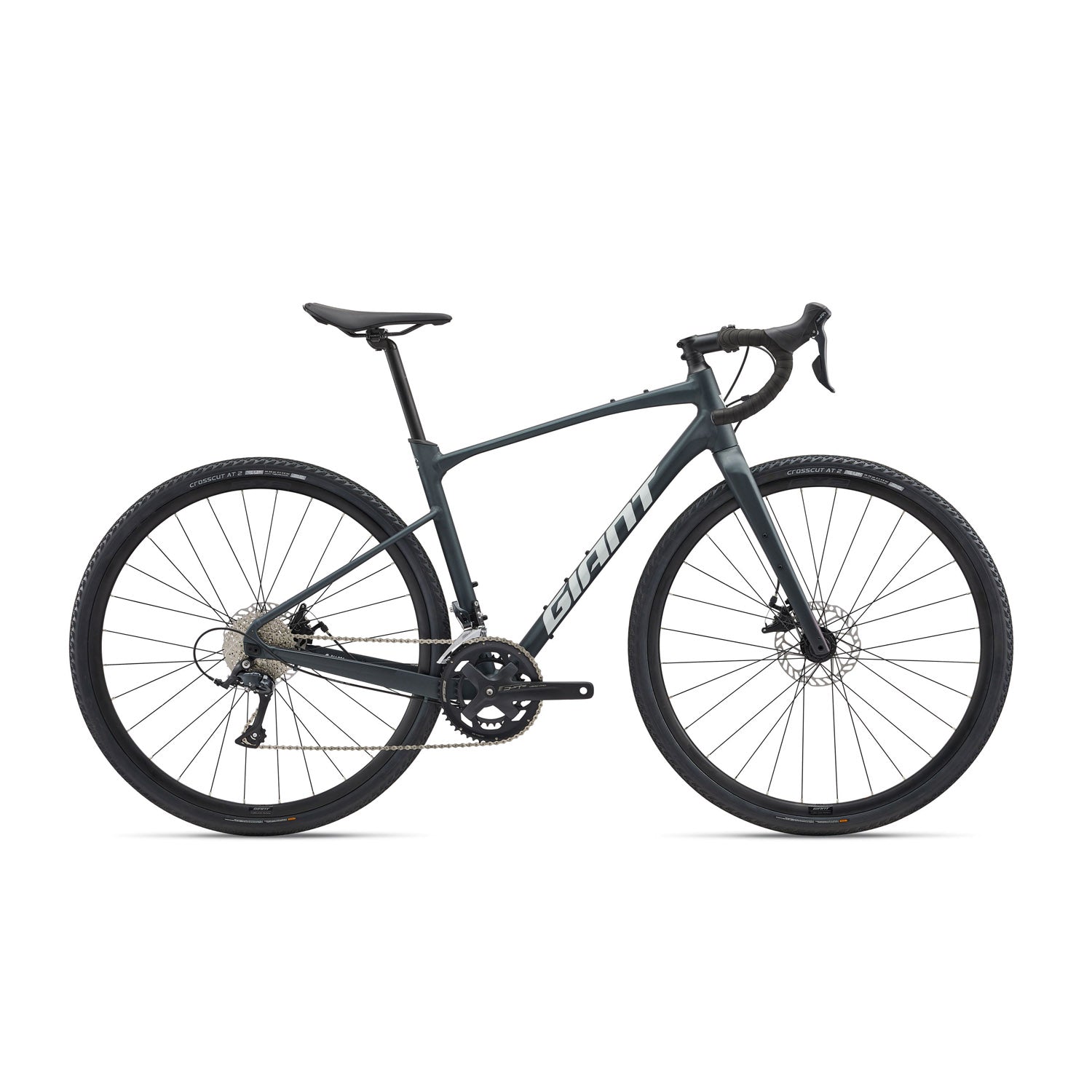

Giant Revolt 2 Asphalt Green

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Confident handling

Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.

Tuned compliance

Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.

Adaptable to the terrain

A flip chip on the rear dropout adjusts the wheelbase: short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maximum compliance, or switch to a 30.9mm round or dropper post.

• Sizes: XS, S, M, M/L, L, XL

• Colours: Asphalt Green

• Frame: ALUXX-Grade Aluminium, 12x142mm thru-axle, disc, flip chip dropout

• Fork: Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc

• Handlebar: Giant Contact XR Ergo-Control, 31.8mm XS:4cm, S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm

• Grips: Cork tape with gel

• Stem: Giant Sport, 8-degree XS:50mm, S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm

• Seatpost: Giant D-Fuse, alloy, 14mm offset

• Saddle: Giant Approach

• Shifters: Shimano Sora, 2x9

• Front Derailleur: Shimano Sora

• Rear Derailleur: Shimano Sora, long cage

• Brakes: Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm

• Brake Levers: Shimano Sora

• Cassette: Shimano HG400, 11x34

• Chain: KMC X9

• Crankset: FSA Vero Pro, 32/48 XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm

• Bottom Bracket: Cartridge

• Rims: Giant S-X2 Disc wheelset, alloy

• Hubs: Giant alloy, 12mm thru-axle

• Spokes: Stainless

• Tyres: Giant CrossCut AT 2, 700x38c, tubeless

• Extras: Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
