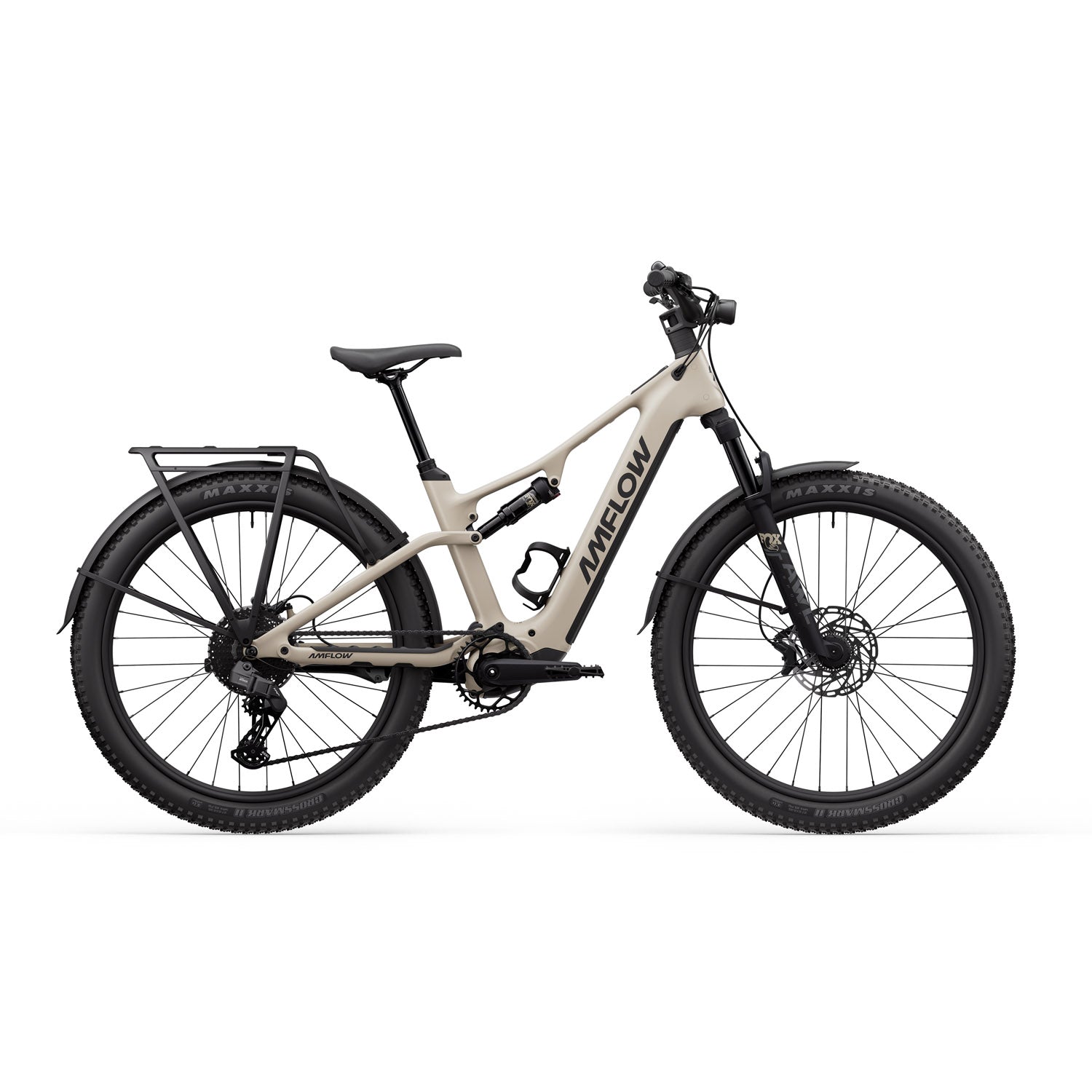

Amflow TL Carbon Silica Beige

An SUV e-bike built for multiple scenarios, Amflow TL Carbon brings agility on trails, smoothness in the city, and stability to loaded touring.
Long Range With 800Wh Removable Battery

The 800Wh battery is easy to swap and delivers up to 172km of range . Add a secondary battery to expand the total capacity up to 1280Wh
Supports up to 200kg Total Weight

Supports up to 200kg total weight. Features MIK HD-compatible rear rack and modular mounting design for panniers and a bike trailer.
125N·m & 1100W Powerful Output

Weighing just 2.65kg, the Avinox M2 Drive Unit delivers 1100W of peak power and 125N·m of max torque for steep ascents.

Frame

• Amflow TL Carbon Frame

• Full Suspension Design

• Removable Battery System

• Compatible with 27.5" and 29" Front and Rear Wheels

• Compatible with Front and Rear Mudguards

• Compatible with Front and Rear Racks

• Compatible with Bike Trailers (Trailer Thru-Axle Required)

• Colour: Silica Beige

E-Bike System

• Motor: Avinox M2 Drive Unit

• Continuous Torque: 110Nm

• Peak Torque: 125Nm

• Display: Avinox DPC100 2" OLED Control Display

• Battery: Avinox RS800 Removable Battery

• Battery Capacity: 800Wh

• Wireless Controllers: Avinox Wireless Controllers (Left & Right)

• Charger: Avinox 4A Charger

• Charging Output: 168W

Suspension

Fork

• FOX AWL Sport

• 120mm Travel

• RAIL 2.0 Damper

• Low-Speed Rebound Adjustment

• 15x110mm Kabolt Axle

• 44mm Offset

Rear Shock

• FOX Float Rhythm

• Amflow TL Tune

• Low-Speed Rebound Adjustment

• 190x45mm

Drivetrain

• Rear Derailleur: TRP E.A.S.I. RD-T7010E-L Electronic

• Cassette: CS-M5243, 11-43T

• Chain: Avinox eGlide T

• Chainring: Avinox Direct Mount, 38T

• Crankset: Avinox SL

• 155mm (S/M)

• 160mm (L/XL)

Brakes

• Brakes: Tektro TKD173 Hydraulic Disc

• 4-Piston Calipers

• Custom Tuned for Amflow

• Rotors: Tektro TR180-61E

• Front Rotor: 180mm

• Rear Rotor: 180mm

• Integrated Tonewheel for Avinox System

Cockpit

• Handlebar: Amflow Touring Handlebar

• 720mm Width (S/M)

• 740mm Width (L/XL)

• 35mm Clamp Diameter

• 93mm Rise

Stem: Amflow Touring Split Stem
35mm Clamp
35mm Length
0° Rise
Grips: Amflow Enduro Grip 2

Seating

Saddle: Amflow Touring Saddle
Dropper Post: Amflow TA Dropper Post
31.6mm Diameter
Adjustable Travel Reduction (0/-10/-20mm)
150mm Travel (S/M)
170mm Travel (L/XL)

Wheelset

Front Wheel

Amflow HTA-25
27.5"
Alloy Rim
25mm Internal Width
32 Hole
15x110mm Thru-Axle Hub
6-Bolt Rotor Mount

Rear Wheel

Amflow HTA-25
27.5"
Alloy Rim
25mm Internal Width
32 Hole
12x148mm Thru-Axle Hub
6 Pawl Freehub
Shimano HG Driver
6-Bolt Rotor Mount

Tyres

Front: Maxxis Crossmark II 27.5x2.35
EXO Casing
60TPI
Wire Bead

Rear: Maxxis Crossmark II 27.5x2.35

EXO Casing
60TPI
Wire Bead

Accessories

Avinox Front Light
Sate-lite M8 Rear Light with Integrated Reflector
Amflow Touring Rear Rack
MIK HD Compatible
Front Mudguard
Rear Mudguard
Amflow Touring Kickstand
Amflow Elite MTB Pedals
Amflow Bottle Cage
Dropper Post Travel Reduction Spacer
Two Battery Keys
Torque Wrench Included
