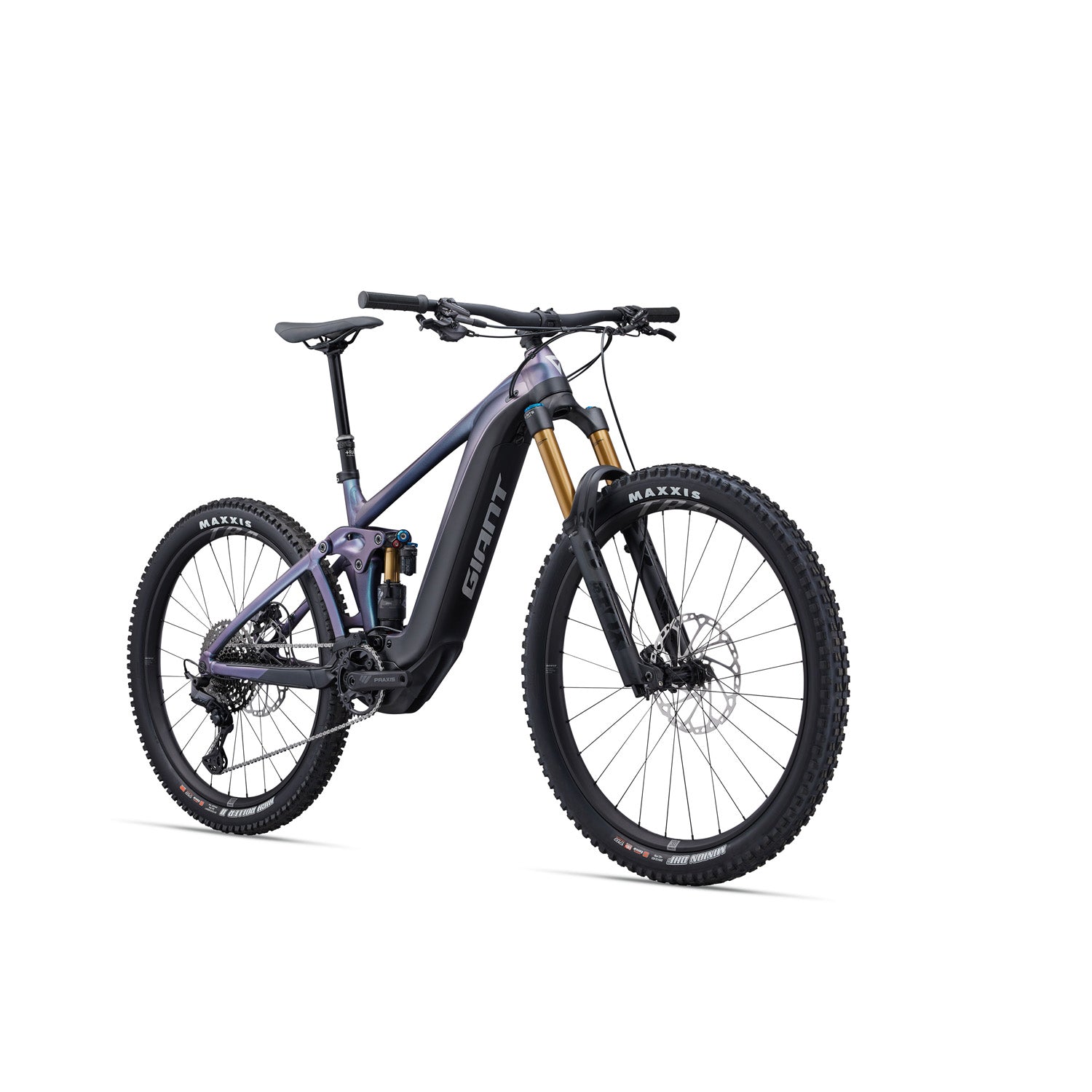

Giant Reign E+1 Blue Dragonfly

Every trail, every steep climb, every thrilling descent. Nothing is out of bounds with the Reign E+. This proven trail ripper gives you the power to enjoy the best parts of the ride again and again.

Key Performance Factors

Trail technology

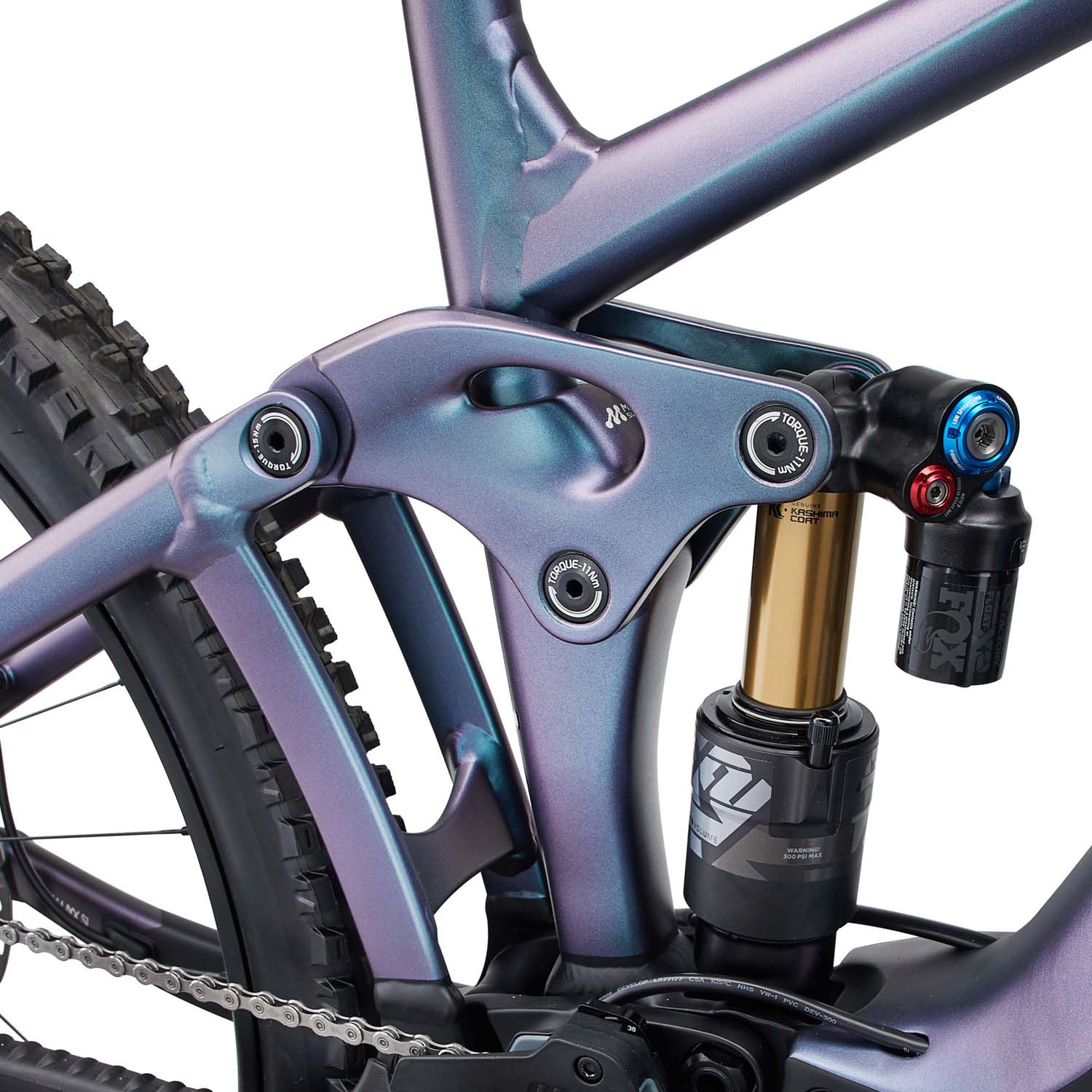

Proven Maestro rear suspension (160mm) and a powerful but compact SyncDrive Pro motor boost your capabilities on steep climbs and rugged descents. Progressive geometry with a shorter rear end and longer reach allow superior handling and agility on technical terrain.

Total control

RideControl Ergo 3 offers integrated, user-friendly button controls that are easy to use. The Giant E-bike App gives you tuning options and E-bike specific fitness tracking.

Long-lasting power

Climb steep mountains and enjoy ripping descents all day long with the new downtube-integrated EnergyPak battery system featuring 800Wh of capacity.

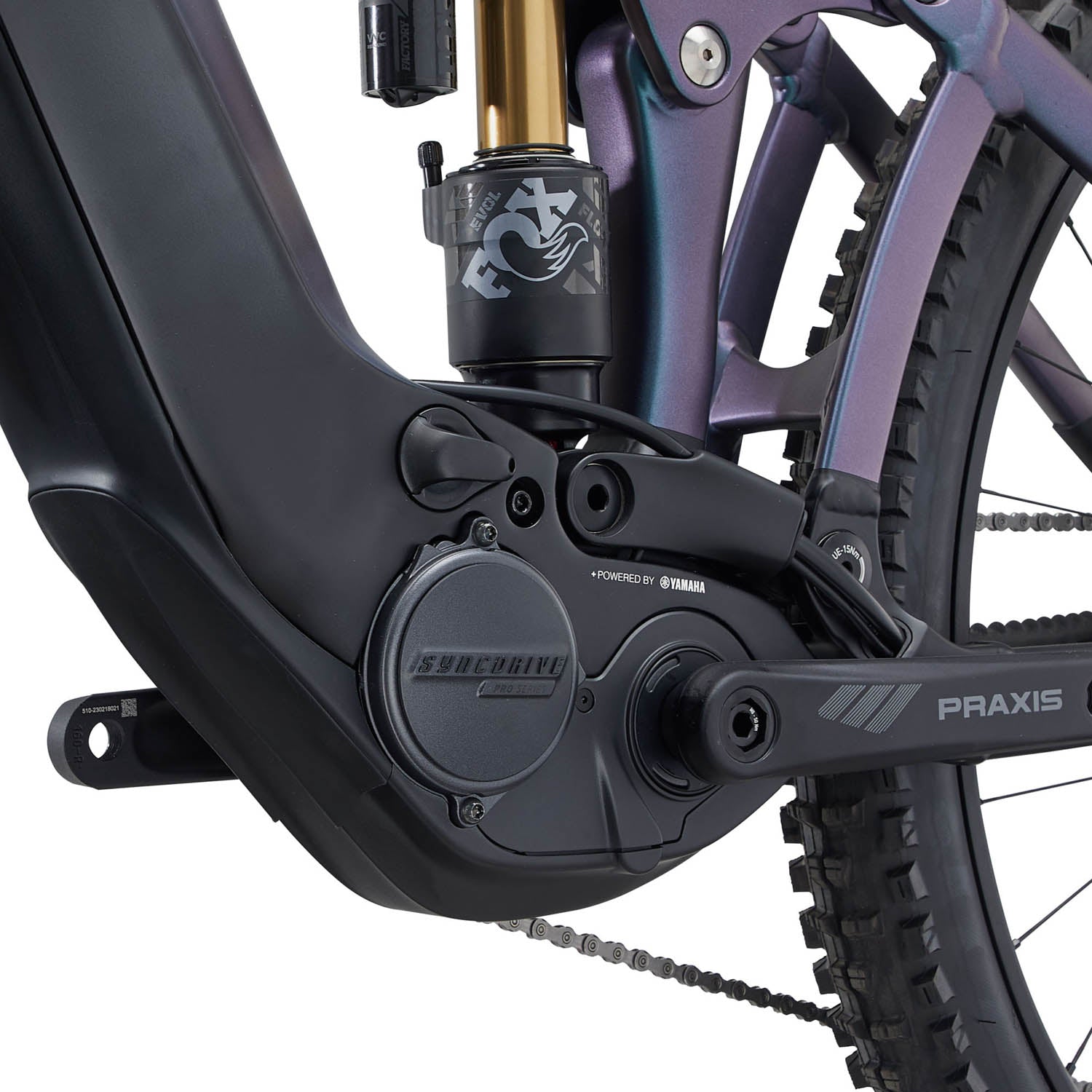

• Motor: SyncDrive Pro 2, 85Nm, powered by Yamaha

• Controller: RideControl Ergo 3, grip integrated

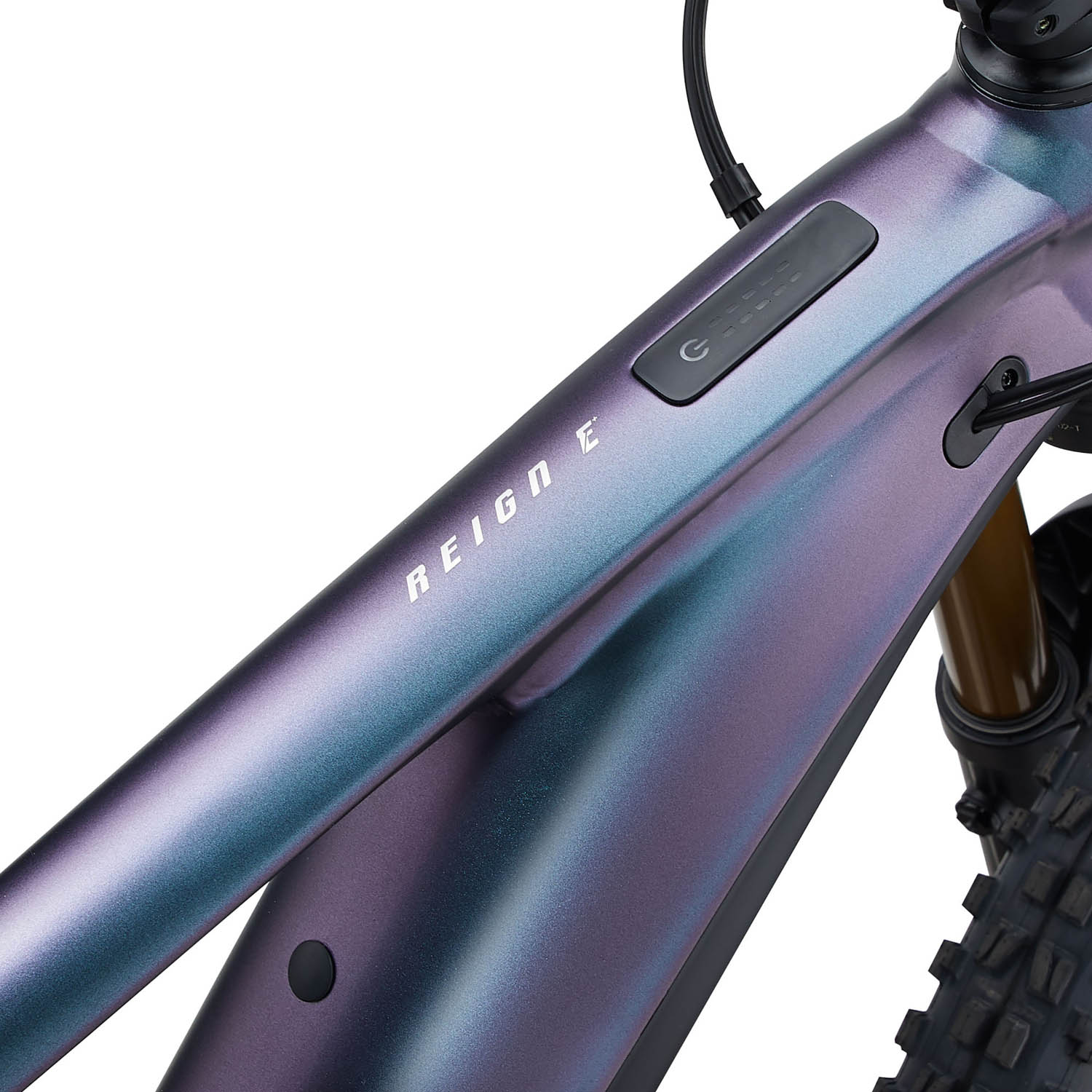

• Display: RideControl GO, frame integrated LED display ANT+ Wireless display compatible

• Battery: EnergyPak Smart 800Wh EnergyPak Plus range extender compatible

• Charger: EnergyPak 6A smart charger

• Maximum assisted speed: Pedal-assist limited to 25 km/h in accordance with
• Australian regulations (EN15194); no motor support above this speed

• Connectivity: Giant RideControl App enabled ANT+ wireless display signal with e-bike profile

• Colours: Blue Dragonfly / Black

• Frame: ALUXX SL-grade Aluminium, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, flip chip, UDH hanger 12x148mm thru-axle

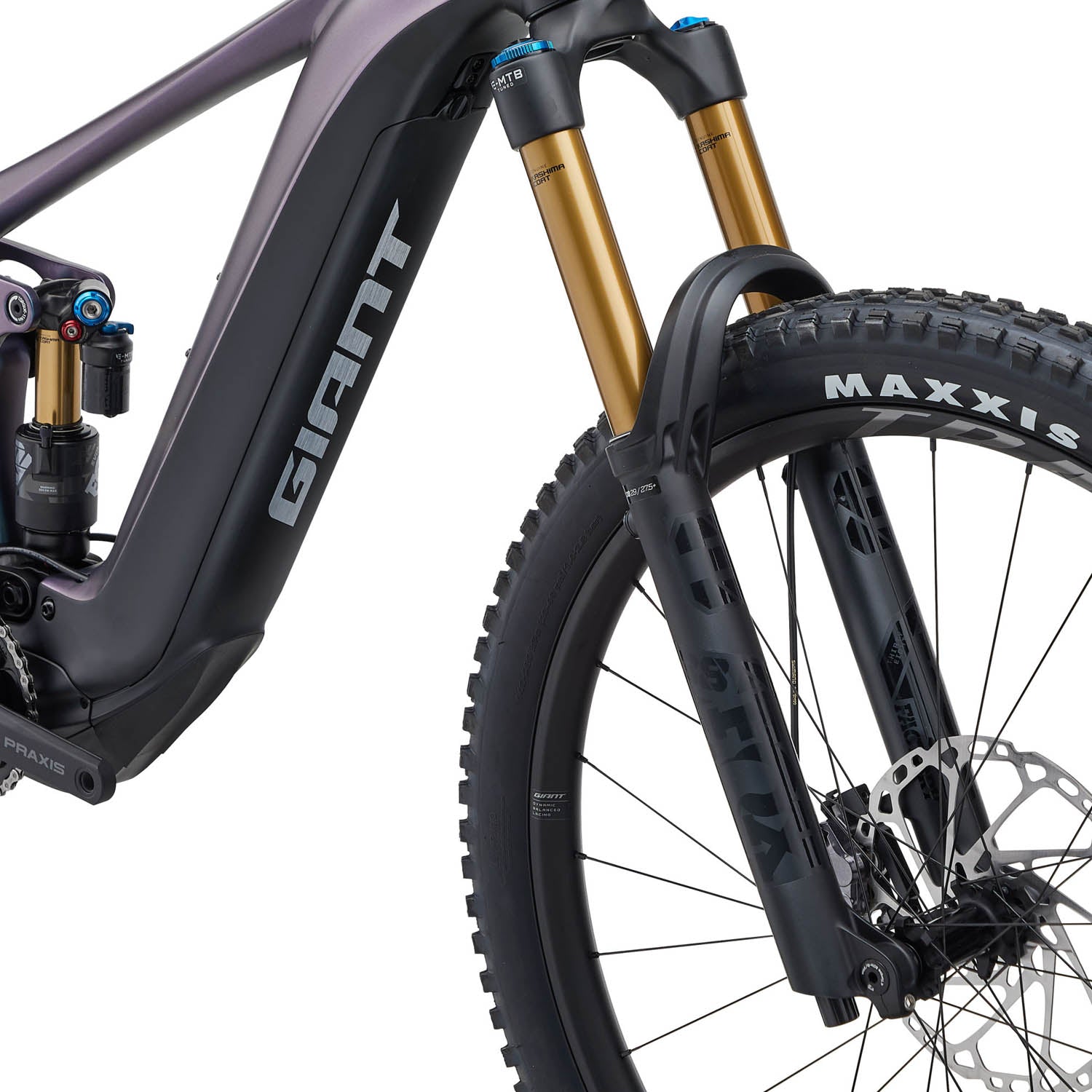

• Fork: Fox 38 Factory E-Tuned, 170mm travel, 44mm offset, GRIP2 VVC damper, Boost Kabolt-X 110x15mm

• Shock: Fox X2 Factory, EVOL Large Volume sleeve, custom tuned
  Handlebar: Giant Contact Trail, 35mm
  Grips: Giant Tactal Pro-E, single lock-on
  Stem: Giant Contact SL 35mm S:40mm, M:40mm, L:40mm, XL:50mm
  Seatpost: TranzX travel-adjustable dropper
  Saddle: Giant Romero Trail
  Pedals: Platform
  Shifters: Shimano XT LinkGlide, 1x11
  Front Derailleur: MRP HD2 co-moulded chain guide
  Rear Derailleur: Shimano XT LinkGlide 11-speed, Shadow+
  Brakes: Shimano XT BR-M8120, 4-piston, hydraulic disc, [F] 220mm, [R] 220mm
  Brake Levers: Shimano XT BL-M8100, I-spec EV
  Cassette: Shimano Cues LinkGlide, CS-LG400-11, 11-50T, 11-speed
  Chain: Shimano LinkGlide, CN-LG500
  Crankset: Praxis N.W. 36T Cold Forged 4130 premium steel Praxis e-HD forged crankarm set (S/M:160mm, L/XL:165mm)
  Rims: E-TRA Hookless Tubeless ready Alloy 29 [F] / 27.5 [R], 30mm inner width
  Hubs: E-TRA MTB Alloy Hub, 6 Bolt, 110x15 [F] / 148x12 Shimano HG Drive Body Pawl Driver (3 Pawl 30T) Thru-axle [R]
  Spokes: Sapim E-Lite [R] Race [F], e-bike optimised
  Tyres: Maxxis Minion DHF 29x2.6"" foldable, Tubeless, EXO+, 3C MaxxTerra[F] Maxxis High Roller II 27.5x2.5"" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
  Extras: Tubeless kit (liquid, valves, levers, manual, tool)
  Lock: Torx 25 Battery Lock with built-in Torque limiter
